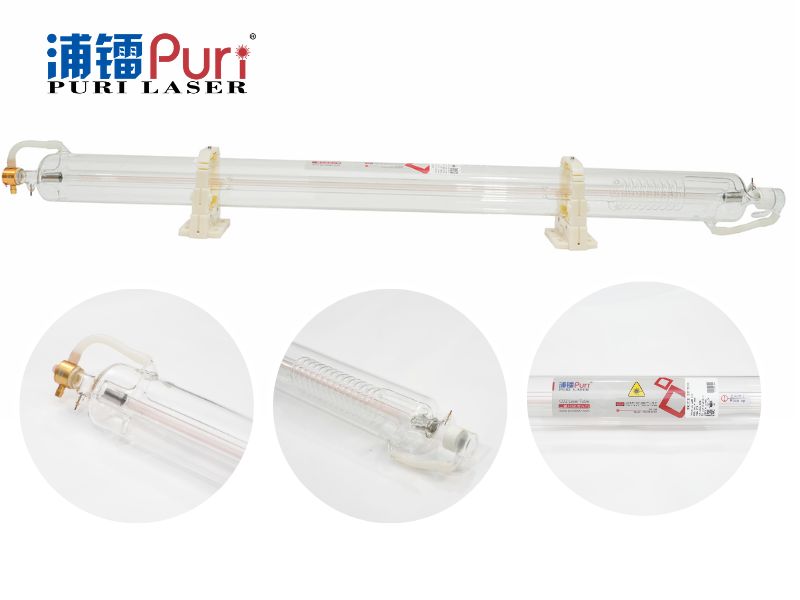

Puri Laser: High Class Catalyst CO2 Laser Tube Series — R

A classic design built with mature craftsmanship, delivering stable performance, reliable quality, consistent power output, and a small, round laser spot. Ideal for both engraving and cutting applications.

Product Features

Stability

The discharge tube is made from imported glass and manufactured through advanced glass-metal sealing technology, a process typically used in high-end CO₂ laser systems. This ensures exceptional structural stability during long-term operation.

Power Output

Equipped with imported reflect mirrors and focus lenses, the Puri R-Series laser tube delivers up to 40% higher power output than standard laser tubes of the same length.

Beam Quality

A highly stable resonator design ensures excellent beam formation, achieving a TEM00 mode with a smaller, more precise, and more consistent laser spot.

Long Service Life

The inner discharge tube is coated with a catalyst and paired with Puri Laser’s proprietary electrode treatment process, resulting in more stable discharge and an extended service life of up to 8,000 hours with minimal power attenuation during use.

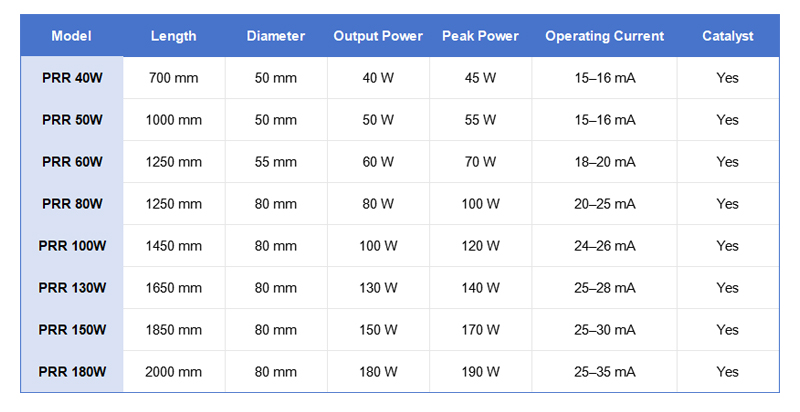

Technical Specifications:
