When people buy a laser cutting or engraving machine, they usually focus on the motion system, rails, motors, or even the machine frame.

But the component that actually determines cutting performance and long-term stability is often the core part inside the machine — the CO2 laser tube.

Especially for acrylic cutting, wood engraving, leather processing, fabric cutting, and similar non-metal applications, the quality of the CO2 laser tube directly affects the final result.

The same machine structure can produce completely different cutting results simply by using a different CO2 laser tube.

Some tubes deliver clean cutting edges.
Some start yellowing materials after long operation.
Some lose power after only a few hours of continuous work.
Others perform well at the beginning, but their lifespan drops much faster than expected.

So for both equipment manufacturers and end users, the real question is not:

“Which laser tube is the cheapest?”

But rather:

How do you choose a CO2 laser tube that actually fits your application and can remain stable over time?

1. Why CO2 Laser Tubes Are Still Widely Used

Today’s laser industry mainly uses several types of laser sources:

• Fiber lasers

• Solid-state lasers

• CO2 lasers

Different laser technologies are suitable for different materials.

In non-metal processing, however, CO2 laser tubes are still one of the most widely used solutions.

The reason is practical.

CO2 lasers are easier to achieve with stable beam quality, fine cutting precision, and strong compatibility with materials like:

• Acrylic

• Wood

• Leather

• Fabric

• Bamboo

• Paper

• Plastic

In addition, a mature CO2 laser tube factory can usually provide stable manufacturing quality with relatively low maintenance costs and convenient replacement.

That’s why most laser engraving machines and medium-power laser cutting machines still rely heavily on CO2 laser tubes.

2. Don’t Look at Power First — Look at Tube Size

This is one of the most misunderstood parts when replacing a laser tube.

Many users focus only on wattage while ignoring the actual tube dimensions.

In reality, inside the CO2 laser tube industry:

Tube length and diameter are directly related to the rated power.

For example:

Many users notice that the same tube size may be labeled differently by different suppliers.

For example:

A tube with dimensions L1200 × D50 mm may be labeled as:

• 60W

• 65W

• 70W

• Even 80W

This usually happens because some suppliers advertise “peak power” instead of stable rated working power.

But for real cutting applications, peak power is not the most important thing.

What truly matters is:

Whether the laser tube can maintain stable output during continuous operation.

So when replacing an old tube, the safest approach is often very simple:

Choose the new CO2 laser tube based on the original tube length and diameter.

This avoids installation mismatch and unnecessary performance issues.

3. Higher Power Does Not Always Mean Better Performance

A lot of first-time buyers assume:

Higher wattage means better cutting performance.

Not necessarily.

As laser power increases, maintaining output stability becomes much more difficult.

Especially during long continuous operation, unstable discharge can cause:

• Rough cutting edges

• Burn marks

• Uneven engraving depth

• Reduced cutting speed

• Optical alignment drift

Some low-quality CO2 laser tubes may show very high power at the beginning.

But after 30 minutes of operation, the output starts dropping noticeably.

That’s why many professional machine manufacturers now focus more on:

• Power stability

• Thermal stability

• Long-duration continuous output

Rather than only peak power numbers.

A mature CO2 laser tube should maintain relatively stable power fluctuation during operation.

4. Beam Quality Directly Affects Cutting Precision

When purchasing a CO2 laser tube, many users only compare wattage.

But another critical factor is:

Beam quality (M²)

Theoretically:

The closer M² is to 1, the better the beam quality.

Better beam quality means:

• Smaller laser spot

• Narrower cutting kerf

• Cleaner engraving details

• Smoother cutting edges

This becomes especially important for laser engraving applications.

Because engraving requires a much finer and more concentrated beam.

Even if the power is sufficient, poor beam quality will still reduce engraving performance.

5. Laser Mode Is More Important Than Many People Think

Inside a CO2 laser tube, laser modes are generally divided into:

• TEM00 mode

• Multi-mode output

Among them, TEM00 is considered the ideal mode for cutting.

Because it produces a more concentrated and symmetrical beam spot.

For cutting applications, TEM00 usually means:

• Finer cutting lines

• Faster cutting speed

• More stable edge quality

Multi-mode lasers may achieve higher power levels.

But due to uneven energy distribution, they are more suitable for welding than precision cutting.

That’s why many professional CO2 laser tube factories focus heavily on beam mode optimization.

Because it directly affects real processing quality.

6. Laser Frequency Also Influences Cutting Performance

CO2 laser output can be divided into:

• Continuous output

• Pulsed output

In actual cutting applications, pulse frequency affects:

• Cutting speed

• Surface roughness

• Heat-affected zone

Generally speaking:

Higher frequency usually produces smoother cutting results.

Most modern CO2 laser tubes operate within several thousand hertz, which is already sufficient for most engraving and cutting applications.

7. Lifespan Depends on Both Manufacturing and Usage

A common question is:

Why can some CO2 laser tubes last over 10,000 hours while others degrade within months?

Besides manufacturing quality, operating conditions also matter a lot.

For example:

• Cooling system stability

• Water temperature

• Long-term full-power operation

• Optical alignment

• Power supply stability

All of these factors directly affect tube lifespan.

Under proper operating conditions, a well-manufactured CO2 laser tube can achieve an average lifespan of around 10,000 hours.

But only if:

• Cooling is sufficient

• The machine avoids continuous overload operation

Many users ignore one simple detail:

Rest time.

Continuous heavy-duty operation significantly accelerates electrode aging.

Allowing the machine to cool down properly can greatly extend laser tube lifespan.

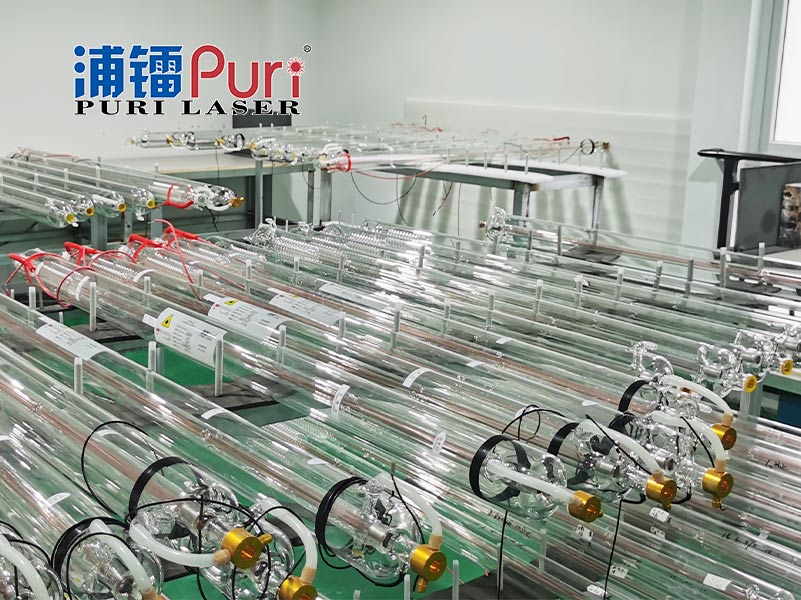

8. How to Identify a Professional CO2 Laser Tube Factory

For equipment manufacturers, supplier selection is critical.

Several areas are especially important:

Complete Manufacturing Capability

Including:

• Glass tube processing

• Gas filling

• Electrode sealing

• Optical alignment

• Aging tests

A complete production chain usually means better batch consistency.

Real Testing Data

Professional manufacturers typically provide:

• Power testing

• Beam quality testing

• Aging test reports

• Lifespan data

Not just marketing numbers.

Focus on Stability Instead of Marketing

Experienced CO2 laser tube factories usually do not only emphasize “higher power.”

Because everyone in the industry understands:

The hardest part is maintaining long-term stable output.
