The answer to the question “how long does a CO2 laser tube last?” may vary depending on the application frequency and service.
The service life of a CO2 laser tube depends on the tube model, the current it works under, the cooling condition, the laser machine and the operation habits.
Instead of providing an estimate, the question “under what condition does it work?” should also be answered.
Puri Laser, as a CO2 tube manufacturer, would like to provide advice on lifespan management, so that a buyer can collect necessary information before replacing the CO2 tube.
Laser machines can be 80W, 100W or 150W, while the CO2 laser tube has its own model, length and diameter.
The rated output and peak output, as well as the working current, should be noted down for reference.
The peak output capacity is helpful to understand what laser power the tube can provide, but do not confuse it with the average working current for long-time operation.
For the purpose of replacement, the following information should be recorded as evidence for the supplier:
Tube model
Tube installation date
Common materials being processed
Daily working hours
Working current
Laser machine model
Power supply model
This information can make it easier for the supplier or technician to understand the working history of the tube.
Heat control plays an essential role in tube service life.
Though a CO2 laser tube can continue to fire under poor cooling conditions, unstable temperature may gradually affect the tube condition.
It is better to check the cooling system under real working conditions, instead of simply testing it when the machine is powered off.
The following factors should also be taken into account:
Water flow
Chilling capacity
Ambient temperature
Cold-water pipe tightness
Inner air bubbles
A circulating pump does not necessarily guarantee sufficient heat dissipation during continuous production.
Low-temperature water does not necessarily mean better cooling if the air humidity is high enough to cause surface condensation.
Cold parts may present potential risks to electrical equipment and optical components. Refer to the recommended temperature range specified for the tube and machine.
Clean water, routine circulation checks, temperature monitoring and shutting down the machine when an alarm occurs are good habits during laser operation.
When the cutting process becomes challenging, operators may increase the laser power percentage through the machine controller.
However, not every controller percentage increase means a higher optical wattage output.
The controller percentage, discharge current and optical wattage output are correlated. However, the actual laser machine current, if a meter is available, should also be compared with the suggested current range for the specific tube model.
Excessive current may temporarily improve the performance of a weak-performing CO2 laser tube, but this does not necessarily solve the underlying problem.
Poor laser machine maintenance can also result in unsatisfactory processing.
Other possible factors include:
Dirty optical components
Incorrect focus position
Processing speed
Material parameters
Beam alignment
Air assist conditions
Before deciding to replace an old CO2 laser tube, it is recommended to trace back to a known working condition.
Use the same:
Material
Material thickness
Focus position
Processing speed
File
Current
Cooling condition
Then compare the output power or engraving effect.
This makes discussion with a technician or supplier much easier.
CO2 laser tubes with the same power rating can show significant differences in service life, depending on their workload and operating conditions.
A sign shop engraving acrylic name plates with moderate settings may experience relatively slow power degradation.
A factory cutting thick acrylic, MDF or rubber during prolonged shifts may need to replace tubes more frequently.
Several operating patterns can affect tube service life:
Frequent start-stop cycles
Long periods of operation at maximum power
Insufficient intervals between intensive jobs
Long daily working hours
Continuous heavy cutting
This explains why CO2 laser tube lifespan should be considered as a range rather than an absolute number.
The more demanding the daily processing is, the more information should be recorded, including:
Working current
Cooling condition
Average processing hours
Actual laser firing hours
Materials being processed
If production relies on a single machine, it is better to prepare a spare CO2 laser tube in advance.
An unexpected tube failure can stop production, delay shipments and put additional pressure on the technician when a full replacement is required.
CO2 laser tube installation and optical assembly can affect performance from the very beginning.
When a new tube is installed, it should be:
Fixed firmly to avoid mechanical stress
Connected according to the manufacturer's instructions
Equipped with appropriate cooling circulation
After installation, attention should also be paid to the beam delivery system so that energy loss during transmission can be minimized.
Misalignment of mirrors or the focusing lens may cause additional processing problems and put unnecessary pressure on the laser system.
To achieve consistent results, optical components should be cleaned regularly according to the laser machine manufacturer's maintenance recommendations.
Harsh handling of lenses, contaminated cleaning cloths and incorrect process adjustments may cause permanent damage to components that are much cheaper to replace than the laser tube itself.
When replacing a CO2 laser tube, remember to take photos before removing the old tube.
Useful photos include:
Tube label
Wiring connections
Water-flow directions
Tube position
Mounting position
These records allow the technician or supplier to better understand the previous installation condition and reduce mistakes during replacement.
CO2 laser tubes have a certain capacity for power degradation and fluctuation.
In many cases, signs may appear before the tube completely fails.
Possible signs include:
A higher power setting is required to process the same material
Cutting results vary between production runs
Engraving becomes unclear
The laser beam becomes more difficult to adjust
Cutting speed or thickness capability gradually decreases
However, these signs should not be treated as the only proof that the tube needs to be replaced.
Before replacing the tube, check:
Cooling system
Optical components
Focusing components
Air assist
Material consistency
Beam alignment
Processing parameters
If these factors remain stable while the laser output continues to decline, it may be time to consider tube replacement.
For a potential tube replacement, the buyer should provide a working summary to the supplier.
The more complete the information, the easier it is for the manufacturer to suggest a suitable replacement.
Current tube model and tube label photo
Laser machine model
Power supply model
Tube installation date
Approximate working power
Processing material types
Cooling system
Working temperature
Photos or samples showing changed cutting or engraving results
Other information related to the tube's working condition
CO2 laser tube lifespan has always been an important issue for laser operators.
If you want to extend the interval between replacements, follow the general maintenance recommendations provided by your laser machine manufacturer and pay attention to:
Optical alignment
Cooling system stability
Appropriate working current
Regular optical cleaning
Proper installation
Stable processing parameters
The key is not simply to run the tube at lower power. It is to keep the entire laser system working within a stable and appropriate operating condition.

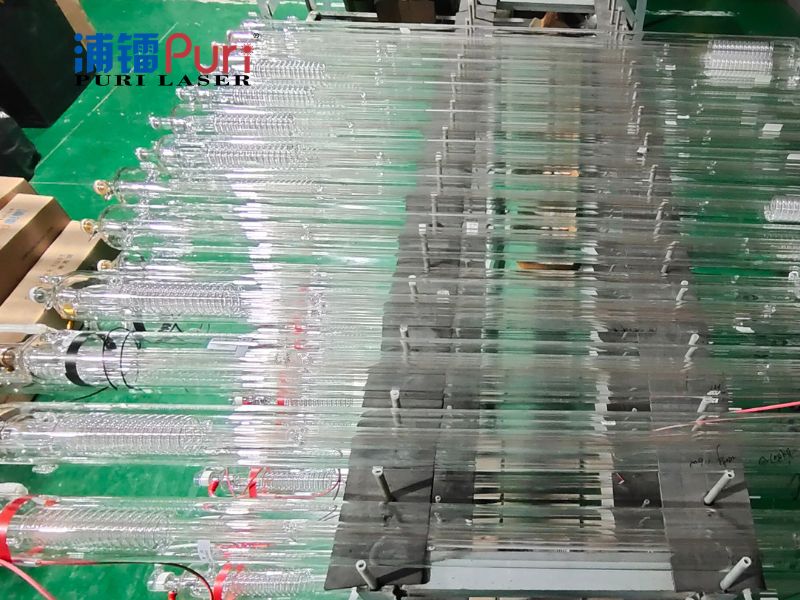

Puri Laser has specialized in CO2 laser tube R&D and manufacturing since 2009, with the factory located in Nantong, China.
